Synchroni Sync-Neo Wearable Bio-Sensor

Technical

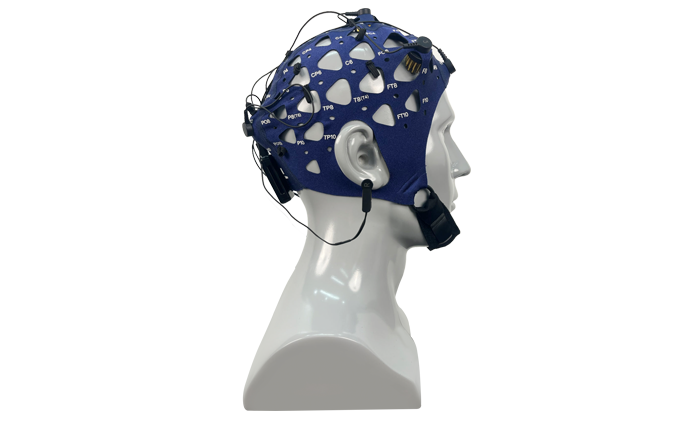

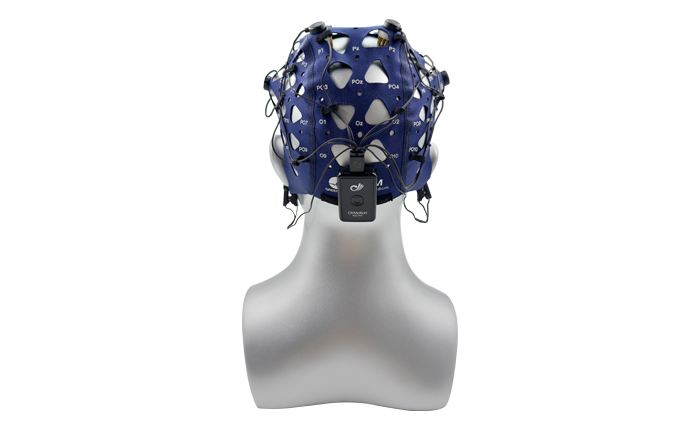

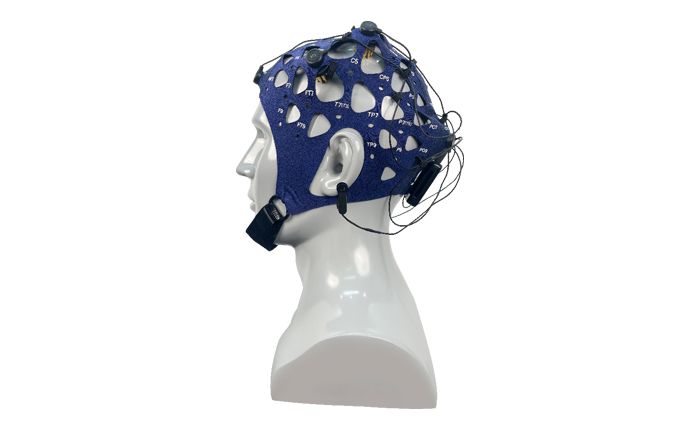

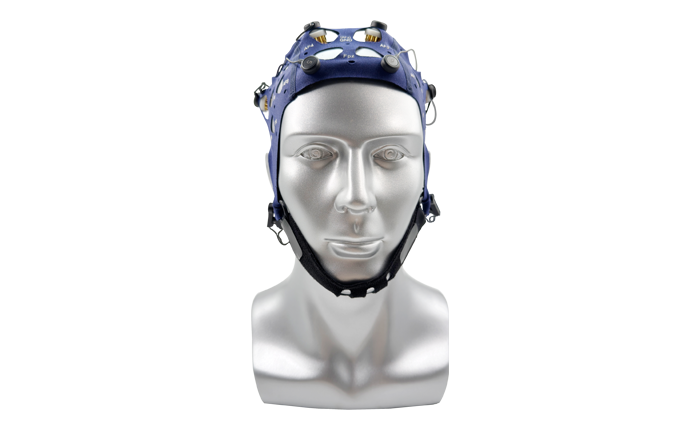

EEG Electrode Cap：

● Number of EEG channels：8
● Size (head circumference)：Large: 62cm/Middle: 58cm/Small: 54cm
● Material quality:Nylon

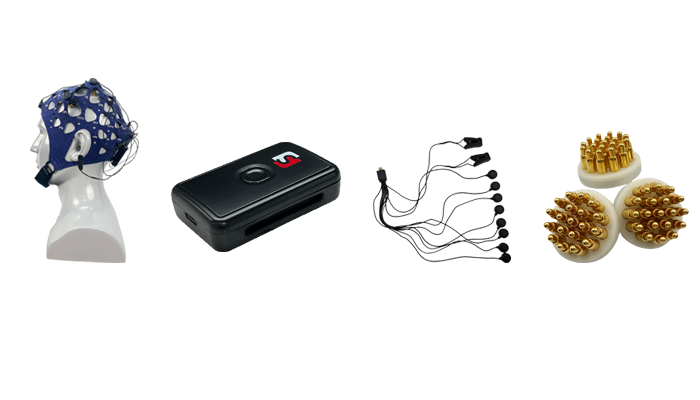

● Electrode:Dry electrode cap: metal spring needle electrode/Wet electrode cap: silver chloride electrode

ADC Specifications：

● Sampling Rate:250Hz
● Resolving Power:24 bit
● Input Range:(-333mV,+333mV)
● Sensitivity:± 4 μ V
● Input Impedance:>500M Ω
● Common mode rejection ratio:− 123dB
● Impedance Detection:support
● Signal-to-noise ratio:110dB

Battery (energy)：

● Battery type:Rechargeable lithium battery 3.7V, 320mAh
● Working hours:12 hours
● Rated current:30mA

IMU：

● Raw data collection:Accelerometers and gyroscopes
● Sensor fusion results:Six axis fused quaternion
● sampling rate:50Hz

Voltage：

● input voltage:DC 3.7V

EEG Signal Amplifier：

● Material quality:ABS+PC
● Size:Length * width * height: 54 * 34 * 14.5 (mm) Tolerance: ± 0.5mm
● Weight:100g (including battery)Tolerance: ± 5g

Communication Mode：

● Bluetooth BLE4.2

● Real-time EEG Signal Collection
● Waveform Display Settings
● EEG Data Recording

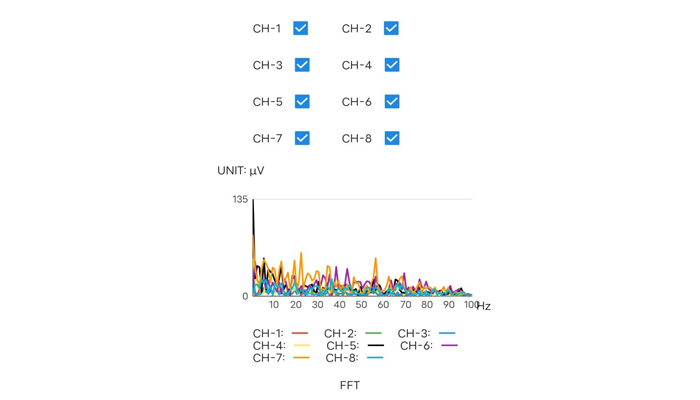

The Synchroni Sync-Neo Wearable Bio-Sensor supports an 8-channel non-invasive EEG electrode scheme, mainly used for non-invasive real-time EEG data acquisition, wireless forwarding, and data storage. And through the Synchrony APP, real-time display of EEG signals, waveform display settings, EEG data recording and playback, impedance detection and other functions can be achieved.
