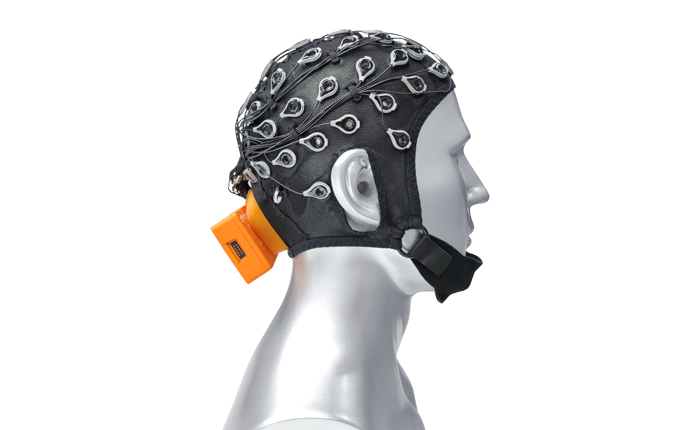

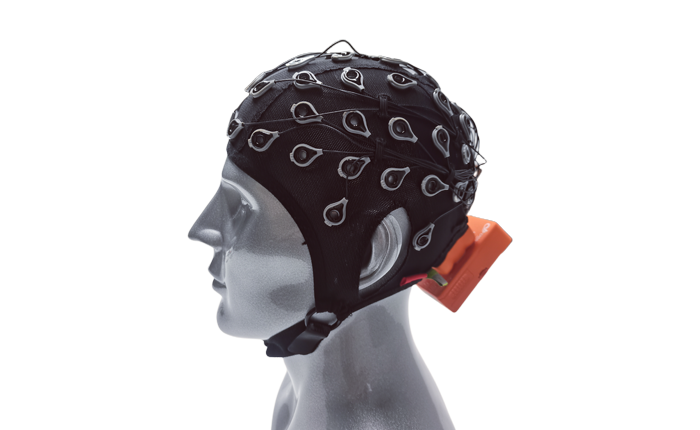

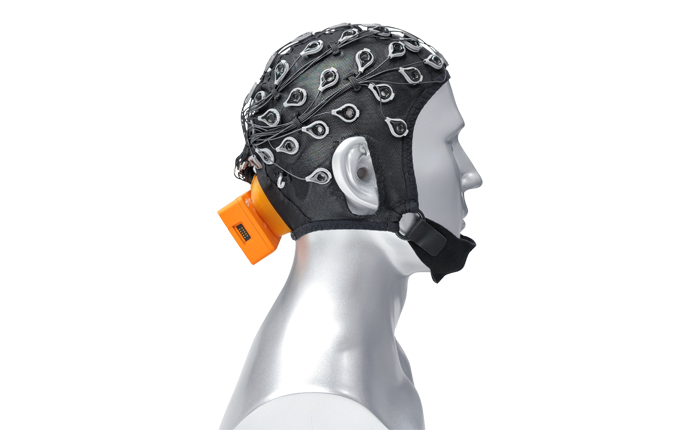

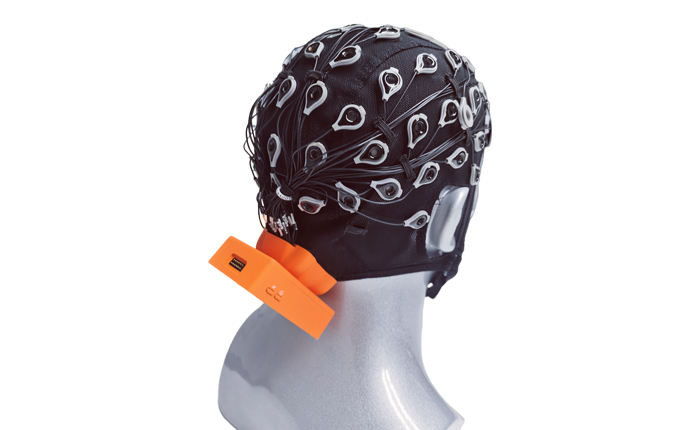

OB-1000 Intelligent EEG Machine

Technical

Number of channels：

● Number of EEG channels：64

Sampling rate：

● Maximum sampling rate：1000SPS

ADC (Analog to Digital Converter) specifications：

● resolving power：24 bit
● Input Range：(-187.5mV,+187.5mV)
● sensitivity：22.35nV min
● Input impedance：>500M Ω
● Common mode rejection ratio：-110dB
● Impedance check：have
● Signal-to-noise ratio：121 dB

Recording interface：

● Record to MicroSD card：When the sampling rate is set to 500Hz and 64 sensor channels are simultaneously collected, a high-speed MicroSD card with a capacity of 32GB can store data for approximately 70 hours
● Online data transmission：Wireless EEG Machine Acquisition Software (OBS-1000)
● Transport protocol：TCP

IMU：

● Raw data collection：Accelerometers, gyroscopes
● sampling rate：50Hz

connector：

● EEG electrode signal interface：100 pin connection port with magnetic adsorption 5x20
● Event button interface：10 pin connection port with magnetic adsorption 2x5

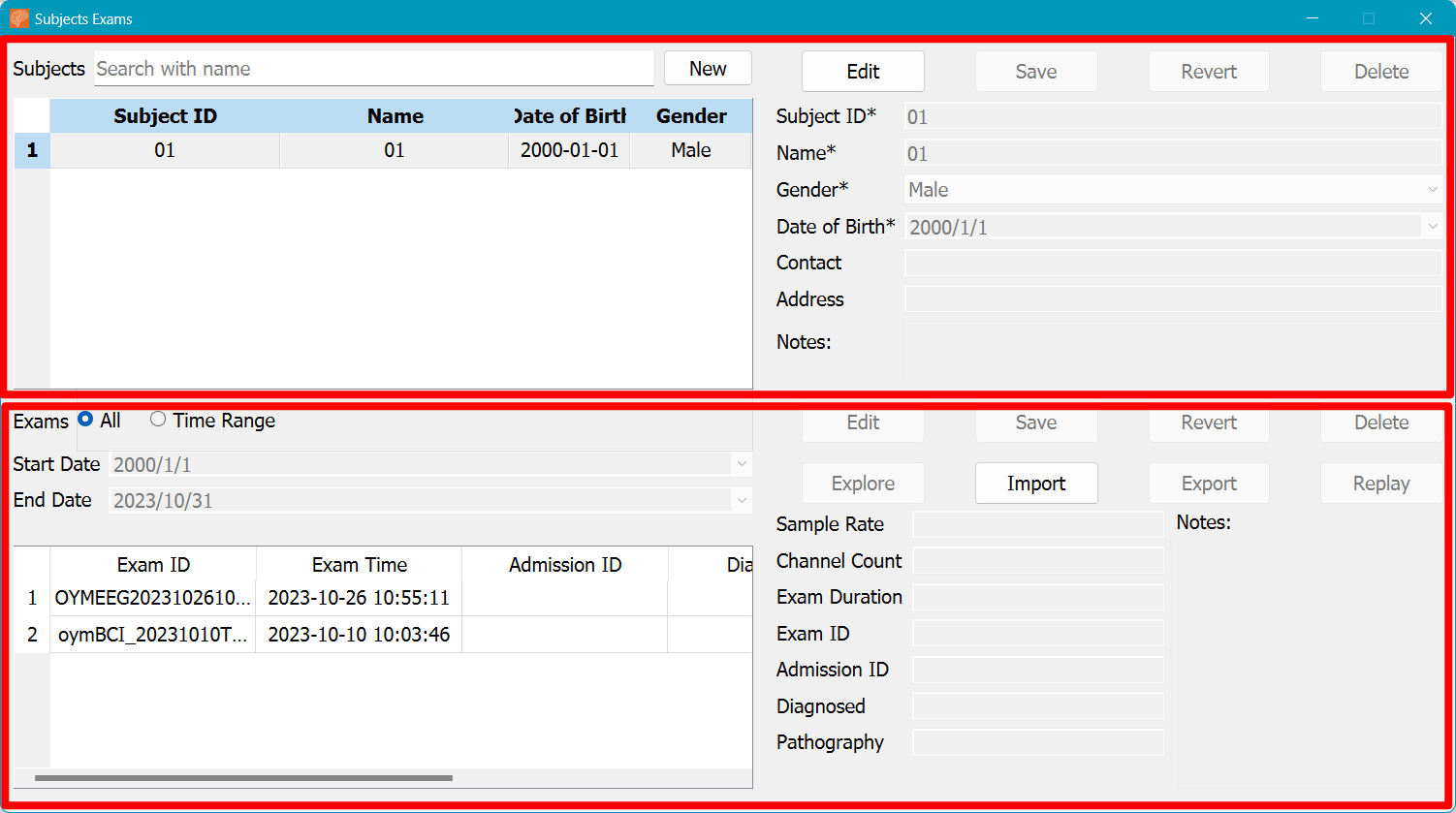

● functions such as adding and managing test objects

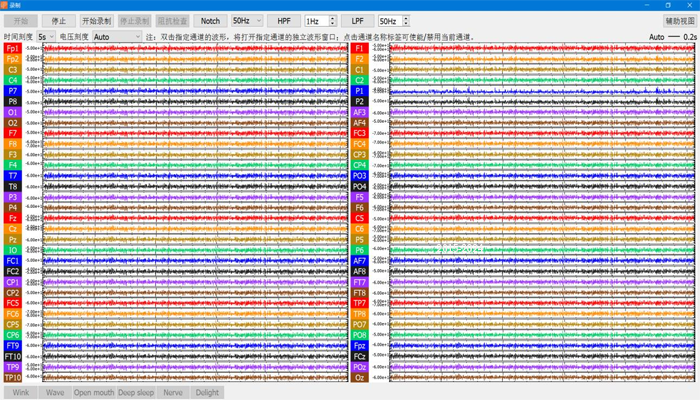

● real-time collection of EEG signals
● data management of EEG signals
● waveform display settings
● playback of EEG recorded data
● event labeling and recording
