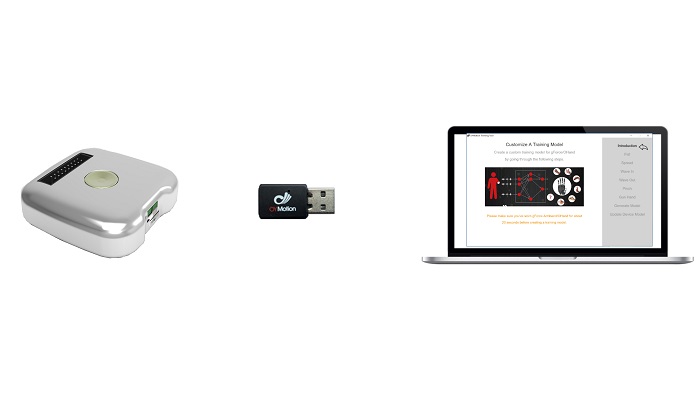

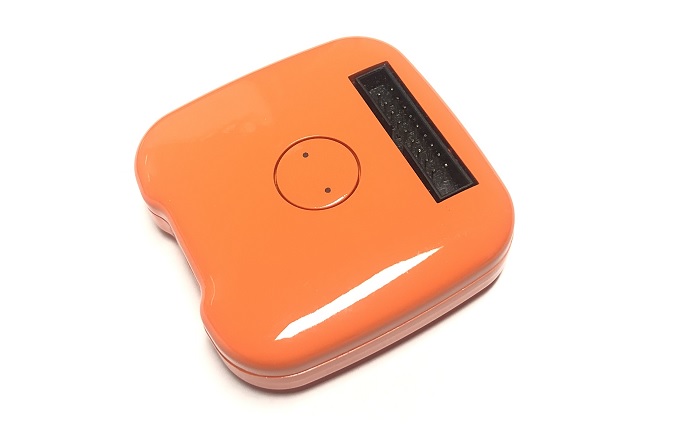

gForceOct Wireless EMG System

Technical

Low Power：

● Ultra-low Power ARM Cortex M4
● Bluetooth BLE4.2
● Power Consumption Below 0.1W

Continuous Gesture Recognition：

● User-defined max 16 Gestures Recognition
● 9-Axis Motion Sensor Fusion

Sensor：

● 8-Channel Differential EMG Input Pairs
● Independent Reference Level Output Lead
● 9-Axis Motion Sensor
● Real-time raw EMG and Motion Data Access
● Real-time Quaternion Access

Software SDK/API：

● Support Windows 7,8,10 and Up
● Support Android 4.0 and Up
● Support Unity3d Development
● Support Arduino MCU

Message Indicator：

● Double-LED Indicators

Electrodes：

● Female-Button-Snap Lead Cable
● Disposable Sticker as Electrodes

● 8-Channel real-time raw EMG data acquisition
● 8Bit mode max 1KHz sample rate
● 12bit mode max 500Hz sample rate
● Support user algorithm development and EMG data application

● 3-Axis Acc Sensor
● 3-Axis Gyro Sensor
● 3-Axis Magnetic Sensor
● Support Quaternion, Euler and real-time output of raw motion data

● Full-function support mobile gForceAPP EMG gesture training platform
● Raw Data Access through gForceDongle on Windows
● Support max 16 user defined gestures
